GENERAL
High tensile galvanised iron wire is primarily used for making pc wire and strand which has an special requirement for the tensile strength of wire materials. It is also used ( mostly galvanized wire ) in making stay wire, hoisting wire, spring wire, etc.
Material: Cold drawn wire
Nominal tensile strength (Mpa): 1570, 1770, 1870, 1960, etc.
SPECIFIC PRODUCTS
High Tensile Steel Wire for PC Pole
Round cold drawn wire, high tensile, indented, pre-straightened, normal relaxation and pay out straight
Wires exported to Bangladesh
Attached herewith the HTS specification details: High Tensile Steel Wire used as PC Wire for PC Pole Manufacturing
Wire diameter: 6mm, 7mm, 8mm, 9mm
Applications: Manufacturing of spun type pre-stressed concrete pole for P.C. pole manufacturing plant.
Galvanized HTS Wire
Wires export to Kenya.
HTS Plain wire 2.5 mm
(a)High tensile steel wire, size 2.5mm diameter with a tolerance of 0.02mm, tensile strength of 1200-1400N, weight of zinc coating of not less than 280gm/m2, gauge 12.5, packed in 650 meters per coil
(b)High tensile steel wire, size 2.5mm diameter with a tolerance of 0.02mm, tensile strength of 1200-1400N, weight of zinc coating of not less than 350gm/m2, gauge 12.5, packed in 650 meters per coil / roll
HTS Plain Wire 1.6mm
(a)High tensile steel wire, size 1.6mm diameter with a tolerance of 0.02mm, tensile strength of 1200-1400N, weight of zinc coating min. 350gm/m2, gauge 12.5, packed in 25kgs roll
(b)High tensile steel wire, size 1.6mm diameter with a tolerance of 0.02mm, tensile strength of 1200-1400N, weight of zinc coating min. 280gm/m2, gauge 12.5, packed in 25kgs roll
Hot Dip Galvanized Mild Steel Stay Wire
Application: Soft wire /stay wire
Mild steel wire, zinc coating min. 350gm/m2, 4.0mm diameter used for stay and cross wire, min. tensile strength 500N
Mild steel wire, min. zinc coating 280gm/m2, 4.0mm diameter mainly used for stay and cross wire, minimum tensile strength 500N
ILLUSTRATIONS

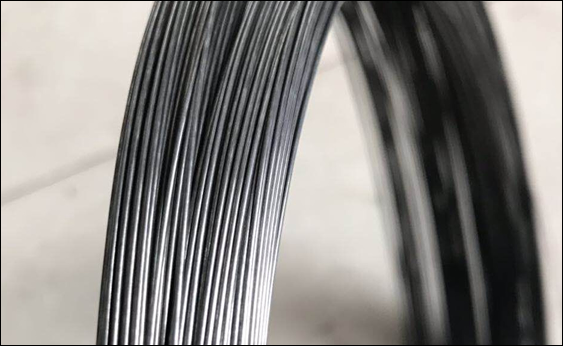

7mm HTS wire, as Prestressing Single Wire

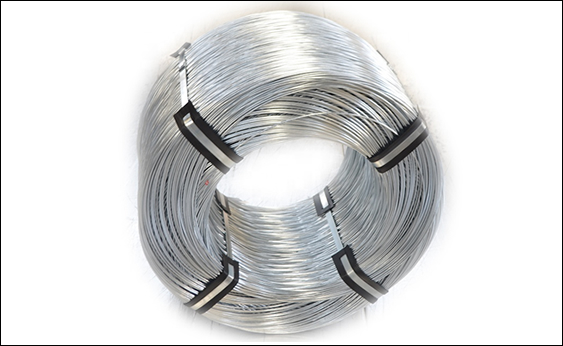

High tensile galvanized steel wire, big coil wire dia. 0.2mm- 4.4mm (Tensile strength 900Mpa-2200Mpa), heavy galvanised zinc coating

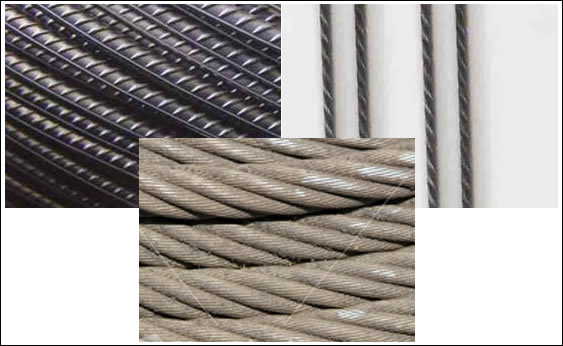

Galvanized steel wire rope, diameter: 1/32-3/8, 0.4mm-32mm
