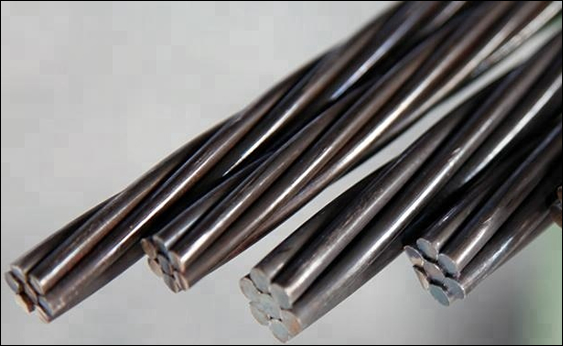

Prestressed Concrete Steel Strand ( simplied as PC strand ) is a multi-wire steel cable helically wound by 2, 3, 7 or 19 high-strength steel mono wires. PC steel strand is widely used in slab post-tensioning, pre-stressing, mining, and stay cable applications.
We supply:
2 wire pc strand;
3 wire pc strand;
7 wire pc strand ( most popularly used);
19 wire pc strand.
We supply following Quality of Steel Strands for PC Concrete:
GB/T5224:1×7-9.5mm/11.1mm/12.7mm/15.2mm/15.7mm/17.8mm/21.6mm
ASTM416:1×7-7.9mm/9.53mm/11.11mm/12.7mm/13.2mm/14.29mm/15.24mm/17.8mm
BS 5896:1×7-8.0mm/9.3mm/9.6mm/11.0mm/12.5mm/12.9mm/15.2mm/15.7mm
JIS G3536:1×7-12.7mm/15.2mm
UNE 36094:1×7-9.3mm/13.0mm/15.2mm
AS/NZS4672: 9.5mm(7 wire)/12.7nn/15.2mm
Specifications can be customised according to customers / projects requirements.
How is Prestressing Strand Used:
Prestressing strand is fabricated into tentons, cages and guide channels (ducts) by strand pushing machine to be used in concrete constructions.

PRESTRESSED CONCRETE STRAND PRODUCTS

- EXPORT COUNTRIES AND QUALITIES

12.54 mm (0.6inch) prestressed concrete pc stranded wire for the tendons, supplied with anchors

PC Strand, low relaxation, left hand lay, plain.
Specification: ASTM A416-06
Size: 0.6"(15.24mm)
T/S: 1860Mpa(min.)
Coil weight: 2.3MT(Min.)
Packing: 2 layers of water resistant materials and wrapped around each coil, 2 wooden dunnages underneath each coil.
Wire strand exported to Korea

Prestressed Concrete Strand (used in construction of Bridges)
Prestressed concrete wire strand for cantilever construction of bridges, consisting of 7 wire, wire diameter of the cord (3mm , 4mm , 5mm ) , strand dia. (9.3mm , 12.5mm, 15.24mm)

PC Strands, Exported to Dubai

Pre-stressed Concrete Strand
Exported to Brazil.
Construction steel to produce concrete structures for buildings:
Diameter: 15.2 mm2
1860 N/mm2
Area: 140 mm2
Metro Weight: 1099 GR / M
Strength: 1860 MPa
Break Load: 260.7 KN
Specification: 15.2 mm CP 190 RB /ASTM A-421 / ABNT NBR 7482

Wire Strands
Exported to West Africa ( Ghana)
1860MPa Dia 4.9mm PC Steel Strands
3 x 2.25mm ( 3 wire )
3 x 3.00mm (3 wire )

Prestressing PC strand
Application: For Post-tesioning
Standard: PC strand 12.7 mm (0.5'') – ASTM 416
Wire strand exported to Vietnam

PC Strands, Low Relaxation, Grade 270K (1860Mpa), Left Hand Lay
PC strands exported to Philippines, with the following specifications:
Low relaxation PC strand
Relaxation value: Low
Quality: Grade 270K (1860Mpa), Left Hand Lay
Wire size: 12.7mm Diameter
Standards: According to ASTM A416 / A416M-02

PC Strand for the UK
PC STRAND 9.3mm
PC STRAND 12.5mm
Packing: In 2-3 tonnes COILS
Quality: A416-02

PC Stranded Wire
Material: Pc stranded wire for prestressed concrete
Specifications: quality as per astm-a416-2005
Very low relaxation to grade 270
Tensile strength: mpa 1860
Coils weight: 2 – 2.5 tons
Packing: soft coils, water-proof paper inner, and p.p. cloth outer
Stranded wire exported to Lebanon

Pc Wire Strand
We supply PC wire strand to Korea, with quality as attached (single wire diameter 2.9mm; 1x3pc strand)
Wire samples tested in Korean Lab per standard KSD7002.

Inquiry please provide: Diameter of core strand, Number of wire, Tensile Strength, Quantity and Standard of strand. Welcome contact us for more details.
