GENERAL
We supply 7 wire pc strand with uncoated, galvanized and HDPE coated finishes. 7 ply pc wire strand is the most popularly used product in prestressing and post tension concrete structures. Uncoated pc strand fall into two types: low-relaxation and stress-relieved (normal- relaxation). Galvanized PC strand with corrosion resistant zinc coating layer is mainly used in mining and cable-stayed bridges construction.
Common sizes:
Structure:prestressed concrete 7-wire strand
Standard: ASTM416, BS5896, others
Nominal diameter:12.7 mm, 15.2mm, 21.8mm, 23.5mm prestressed concrete 7-wire strand
Application: Construction of bridge, highways, airports, sports venues and other infrastructure areas.
1x7 WIRE PC STRAND ASTM A416 MECHANICAL PROPERTY (GENERAL DATA AND SPEC.)
Mechanical Property (General Data and Spec.)
| ASTM A416 | ||||||||
| Stucture | Rank | Nominal diameter (mm) | Sectional area (mm2) | Weight (kg/1000m) | Minimum breaking force (KN) | Elongation ≥(KN) | 1000H relaxation value % ≤ | |
| Initial load is 70% nominal maximum load | Initial load is 80% nominal maximum load | |||||||
| 1×7 | 250 | 6.4 | 23.2 | 182 | 40.0 | 3.5 | 2.5 | 3.5 |
| 7.9 | 37.4 | 29.4 | 64.5 | |||||
| 9.5 | 51.6 | 405 | 89.0 | |||||
| 11.1 | 69.7 | 548 | 120.1 | |||||
| 12.7 | 92.9 | 730 | 160.1 | |||||
| 15.2 | 139.4 | 1094 | 240.1 | |||||
| 270 | 9.53 | 58.4 | 432 | 102.3 | 3.5 | 2.5 | 3.5 | |
| 11.11 | 74.2 | 582 | 137.9 | |||||
| 12.70 | 98.7 | 775 | 183.7 | |||||
| 13.20 | 107.7 | 844 | 200.2 | |||||
| 15.24 | 140.0 | 1102 | 260.7 | |||||
| Dia(mm) | Tensile Strength(Rm/MPa) | Max strength for whold wire(Fm/kN) | Stipulated Nominal Non proportional extension rate(Fp0.2/kN) |
| 12.7 | ≥1860 | ≥185.1 | ≥166 |
| 15.2 | ≥1860 | ≥262.5 | ≥235 |
| 17.8 | ≥1860 | ≥358 | ≥318 |
| Dia(mm) | Cross section size(mm2) | Approximate weight(g/m) | Tolerance(mm) |
| 12.7 | 98.7 | 775 | +0.4~-0.2 |
| 15.2 | 150 | 1178 | +0.4~-0.2 |
| 17.8 | 191 | 1500 | +0.4~-0.2 |
SPECIFIC PRODUCTS
Pre-stress concrete stranded wires - 7 wire strand
Specification: ASTM A416 low relaxation grade 270K seven wire strand with diameter of 9.53mm.
Stranded wires exported to United Arab Emirates
7-Wire PC Strand Diameter : 15.24mm
Steel strand exported to Estonia
Specification: 7-wire PC Strand for prestressing of concrete products pruduced according to PrEN 10138.
12,5 mm diam, 93 mm2 cross section area, 1860 MPa tensile strength
Post Tension 7 Wire Strands
Specification:
Strand Type 1*7 PC strand –EN10138 - BS5896 (Minimum breaking load 279 KN)
Application: For post tensioning
Strands exported to Dubai, UAE
PC Strand Wire
Dia 15.24mm (0.6inch) pre-stressed concrete low relaxation pc wire exported to Dominican Republic.
Application: For precast Pre-stressed concrete Products / PC poles in Construction Works
Specs:- ASTM A416-06 or Equivalent
Grade:- 270 to 300 KSI or closer
Sizes:- 1/2", 3/8", 7/16" or (9.3mm to 12.7mm)
Detail
Mechanical property General Data and Spec.
STRAND WIRE - PC Strand Wire for Pre-stressed Structure.
Application: For manufactures of PC Spun Poles
Steel strand twisted by round steel wire used for pre-stressed concrete structure, rock or earth anchor.
Specification:
1x7 9.53mm, 9.3mm
Strand wires exported to Pakistan.
12.7mm dia 7 Wire Strand

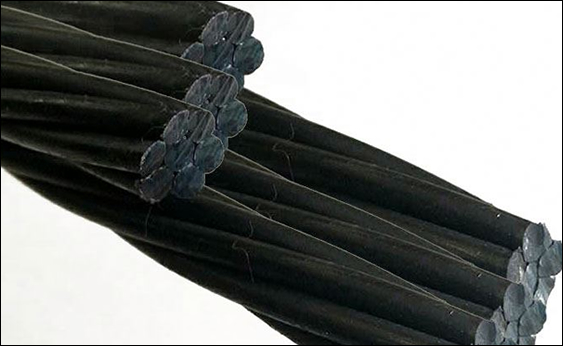

Steel strand for pc girder, uncoated, stress relieved -
PC Strand dia 12.7mm exported to Myanmar
Required Particulars & Specification
Materials for Pre-tensioned PC Girders, no oiled or greased
12.7 mm Ø PC Strand(Low Relaxation)
Standard: ASTM.A 416 (or) Equivalent
Grade : 270
Nominal Diameter: 12.7 mm Ø
Tolerance: + 0.65 mm, - 0.15 mm
Breaking Load: 183.7 KN (min) / 41300 Lbs (min)
Yield Load: 165.3 KN (min) / 37170 Lbs (min)
Glvanized Steel Wire 7 Strands 17SWG
Specification detail:
Wire steel galvanized 7 strands 17 SWG
Signal cable as per railways specification S-2-49
Wires exported to
PAKISTAN
Applications: Tendon
