MILL'S TEST CERTIFICATE OF 7.0MM PC SINGLE WIRE JISG3536
| Commodity | PC SINGLE WIRE | Specification | JISG3536, NORMAL RELAXATION 4 PHASE INDENTED SNI 07 -1155 -1989 |
| Size | 7.0 MM |
TEST ITEM |
UNIT | SPECIFICATION | RESULTS | |
| Min. | Max. | |||
| Diameter | mm | 6.950 - 7.050 | 6.994 | 7.028 |
| Breaking Load | kg | Min. 5950 | 6245 | 6480 |
| Tensile Strength | kg/ mm2 | - | 162.6 | 167.1 |
| Yield Load ( 0.2 % ) | kg | Min. 5200 | 5464 | 5670 |
| Yield Strength ( 0.2 % ) | kg/mm2 | - | 142.3 | 146.2 |
| Elongation (G.L = 100 mm ) | % | Min. 4.5 | 5.0 | 7.0 |
| Nominal Weight | kg/km | Appr. 302 | 295 | 297 |

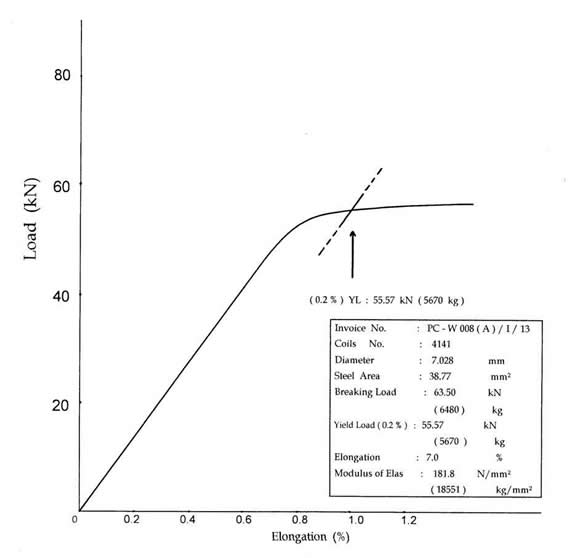

STRAIN - STRESS CURVE
| DESCRIPTION OF SYMBOL πP: PROOF STRESS 0.2 % NON-PROPORTIONAL ELONGATION RT: TENSILE STRENGTH FOR THE ELONGATION AS SPECIFIED FM: MAX. LOAD RM: MAX. TENSION RR: PERMANENT SET STRESS ΣM: ELONGATION AT MAX. LOAD ΣR: PERCENTAGE PERMANENT ELONGATION Ag: PERCENTAGE ELONGATION BEFORE REDUCTION Unit: kN 1 KN = 101.97 kg 1 MPA = 0.10197 kg/mm2 |

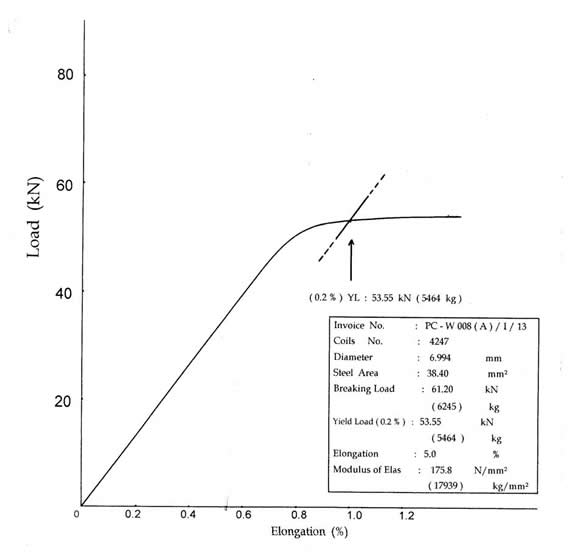

STRAIN - STRESS CURVE
| DESCRIPTION OF SYMBOL πP: PROOF STRESS 0.2 % NON-PROPORTIONAL ELONGATION RT: TENSILE STRENGTH FOR THE ELONGATION AS SPECIFIED FM: MAX. LOAD RM: MAX. TENSION RR: PERMANENT SET STRESS ΣM: ELONGATION AT MAX. LOAD ΣR: PERCENTAGE PERMANENT ELONGATION Ag: PERCENTAGE ELONGATION BEFORE REDUCTION Unit: kN 1 KN = 101.97 kg 1 MPA = 0.10197 kg/mm2 |
