GENERAL

Beam or slab bolster is used to support lower beam steel from the slab form. All legs spaced 2-1/2” on centers. Available in 3/4” to 5” heights in 5’-0” lengths. Other lengths are available on request. We supply slab bolsters galvanized, uncoated and plastic coated.
Beam or slab bolsters are divided into Standard bolsters, slab bolsters upper, slab / beam bolters with plate, according to design and structures.

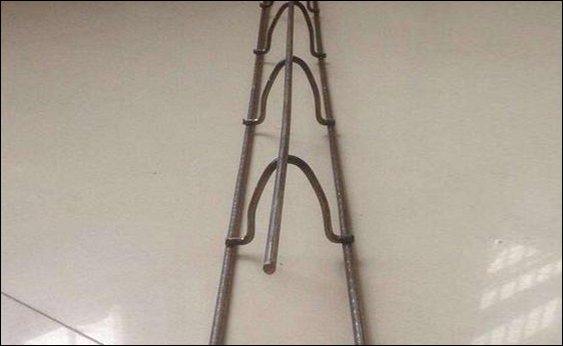

Slab Bolster Upper
Slab Bolster upper is used for supporting one layer of steel above another and spacing them to required distance. May be used on soft material or fill. Standard leg spacing is 5” on centers. Available in 3/4” to 5” heights in 5’-0” lengths. Other lengths are available on request.
Slab Bolster With Plate
Slab Bolster with plate is used for supporting lower slab steel on fill or other soft material. Available in 5’-0” lengths only.

SPECIFIC PRODUCTS

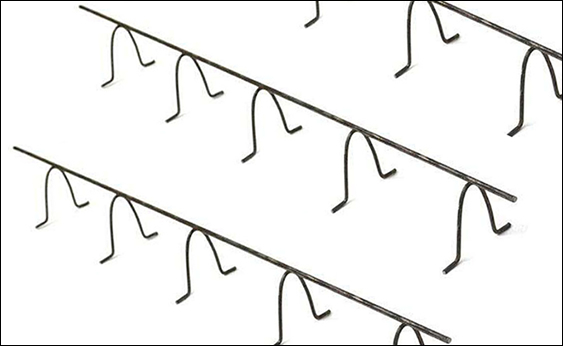

Beam Bolsters, 6 Feet Length
Size:
6' long 50mm high beam bolster
6' long 100mm beam bolster
For Ireland

We supply slab bolsters as fittings for placings rebars:

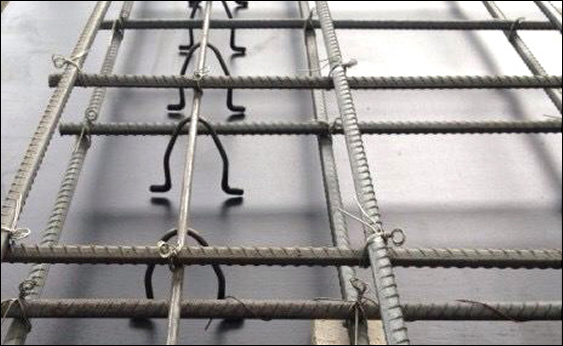

Application Illustrations:

Slab Bolsters - Concrete forming building materials to North American market
With anti corrosion plastic coating

Slab Bolster, size ¾", 1", 1-1/2", 2", 2-1/2" & 3"
Plain feet and dipped & tipped options (wire diameter of legs & top)
SBU – 1", 2", 3", 4" and 5" (wire diameter of legs and top)

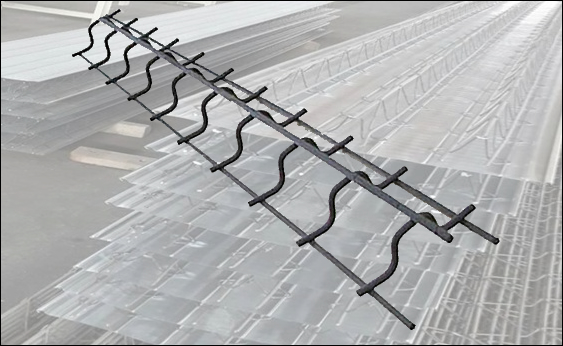

Metal Slab Bolster Upper, Galv. and Coated

Beam bolster upper provides support for upper slab steel,eliminating the need for carrier bars Cover heights up to 5" in 5-ft.
Material: Pre Galvanized & epoxy - coated Metal Slab Bolster Upper
Height:1”
Length:5”
Slab bolster upper provides support for upper layer of reinforcing steel.
Standard finish: plain steel. Also available in pre-galvanlzed wire and epoxy-coated.

Slab / Beam Bolster Uppers, Galvanized
Size:
SBU4” galvanized
SBU6” galvanized
